El-Obeid Gas Depot is one of the main components of the operational infrastructure of the National Petroleum Company (Sudan). The depot is dedicated to the storage and filling of domestic cooking gas and bakery gas, serving El-Obeid City and surrounding areas in accordance with approved operational and safety standards.
The depot is located within the El-Obeid Refinery Area and has been designed and equipped with specialized facilities and filling systems to ensure operational efficiency, safety, and continuity of supply.
Location and Area
- Location: El-Obeid Refinery Area – North Kordofan State
- Approximate Area: 10,000 square meters
Facilities and Components
El-Obeid Gas Depot includes the following operational facilities:
- Administration offices building
- Reception area
- Control room
- External restrooms
Gas Filling Systems

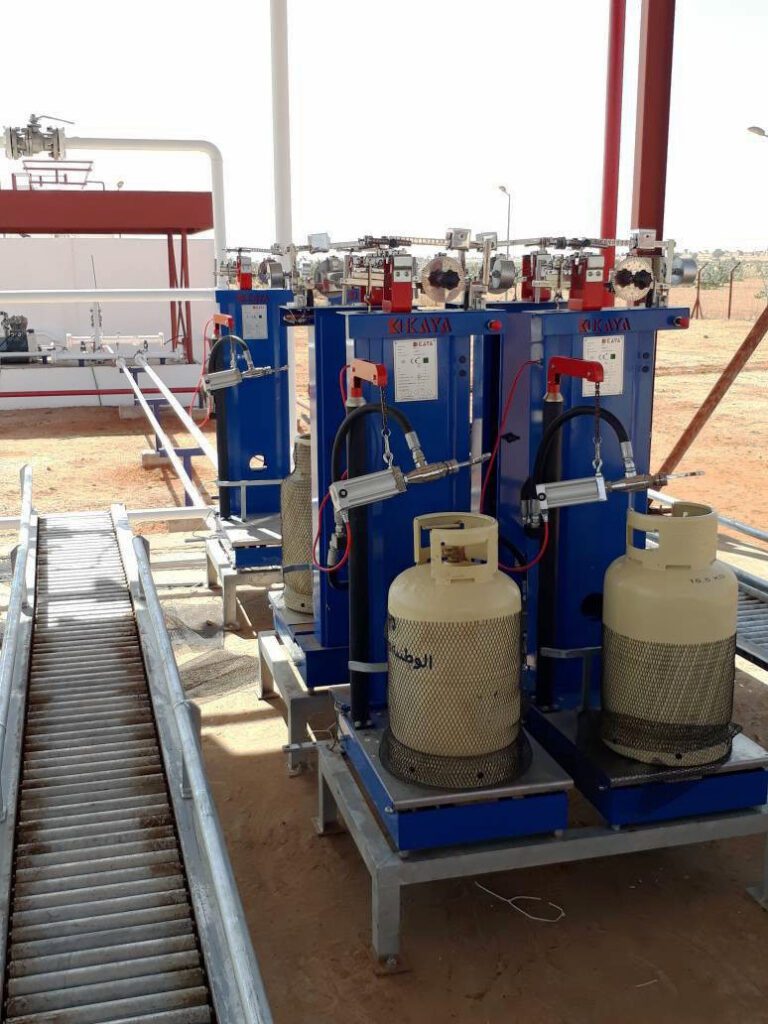

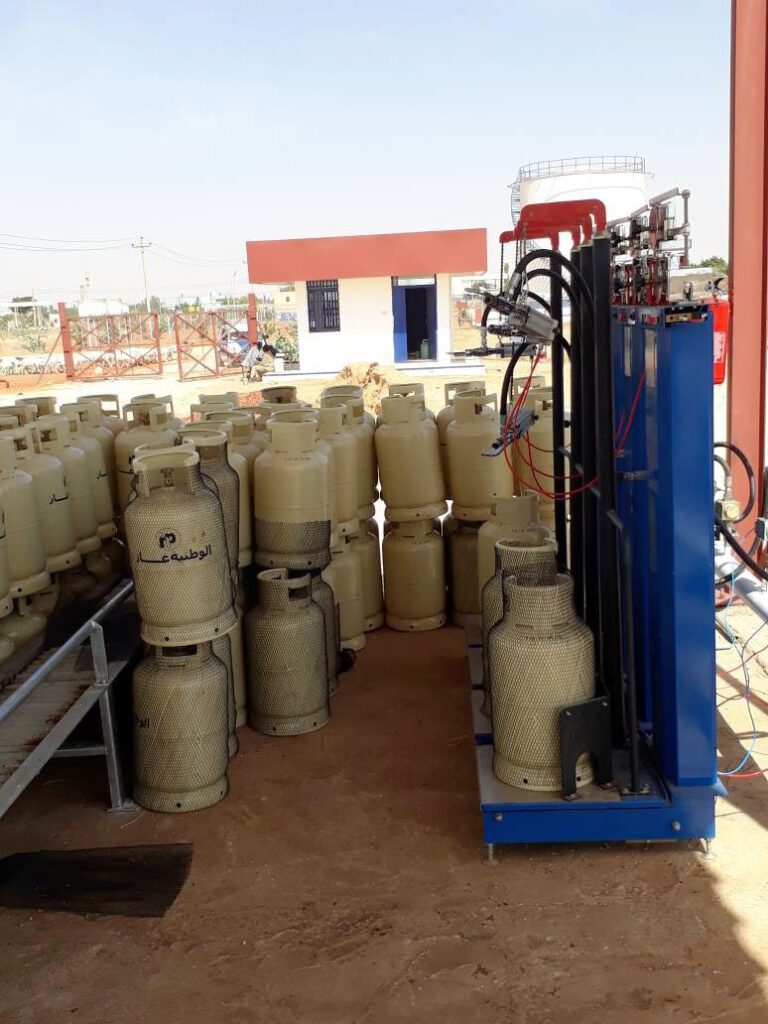

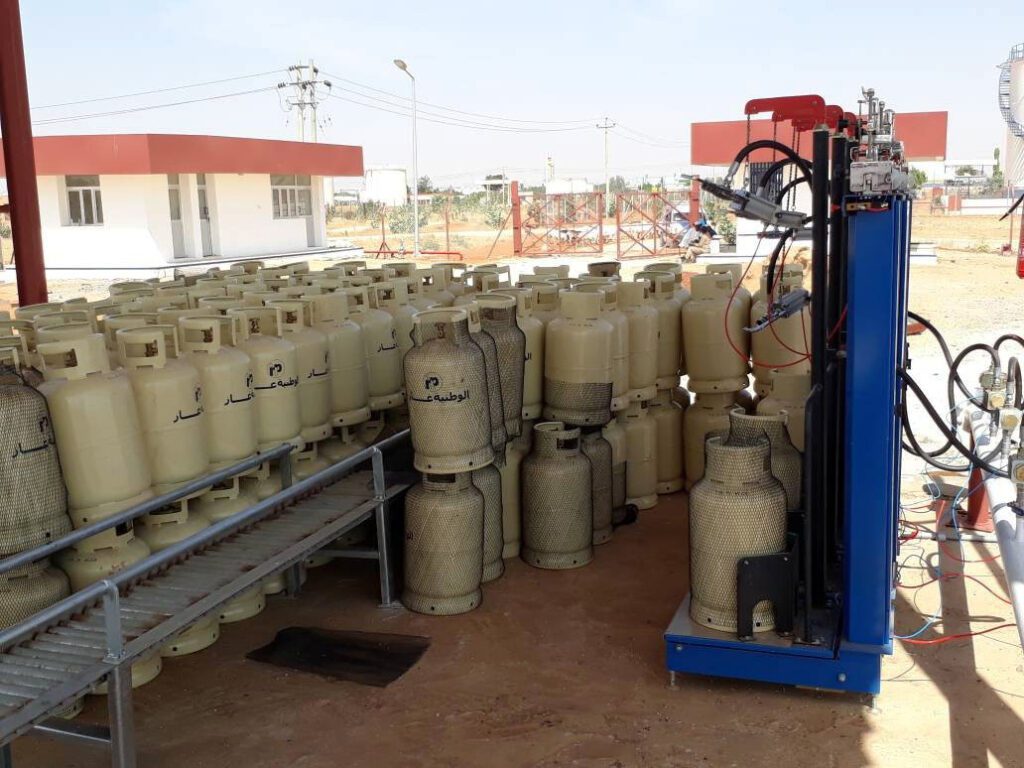

- Gas filling hall equipped with a fixed filling system supplied by KAYA (Turkey):
- 12.5 kg cylinders
- Production capacity exceeding 240 cylinders per hour
- Fixed gas filling system:
- 25 kg cylinders
- Production capacity of 50 cylinders per hour
- Dedicated platform for loading and unloading gas tankers
Storage Tanks
Gas Storage Tanks
- 1 gas storage tank
- Total capacity: 60 tons
Operational and Support Systems
- Fire-fighting system canopy

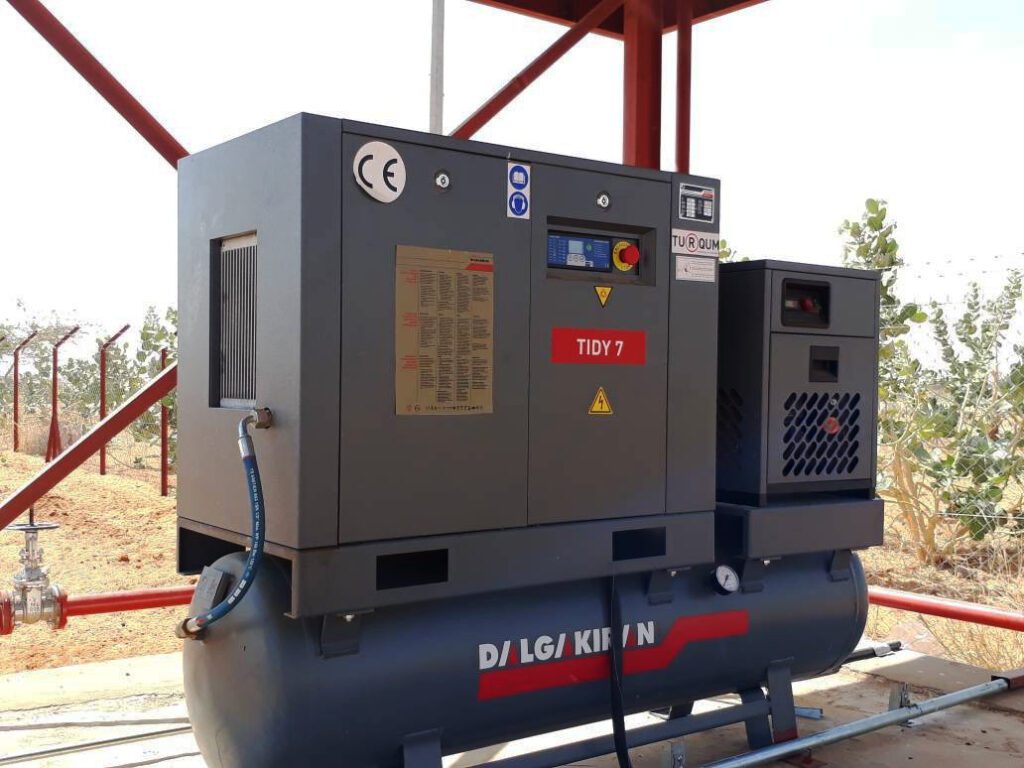

- Air compressor canopy

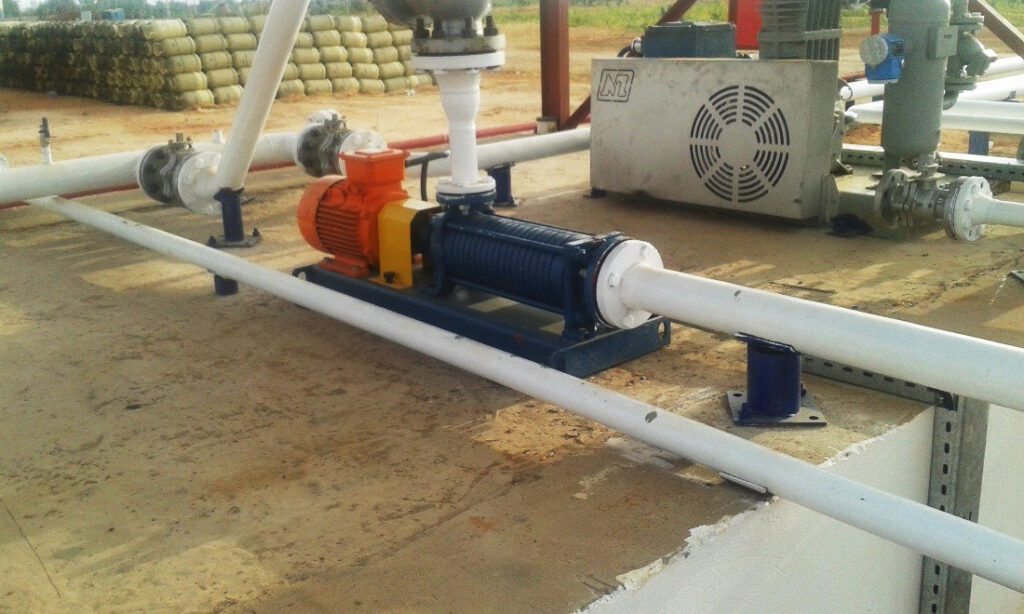

- Gas compressor and gas pump canopy
Safety and Access
- Full compliance with occupational safety, health, and environmental standards
- Three access points:
- Entry
- Exit
- Emergency exit

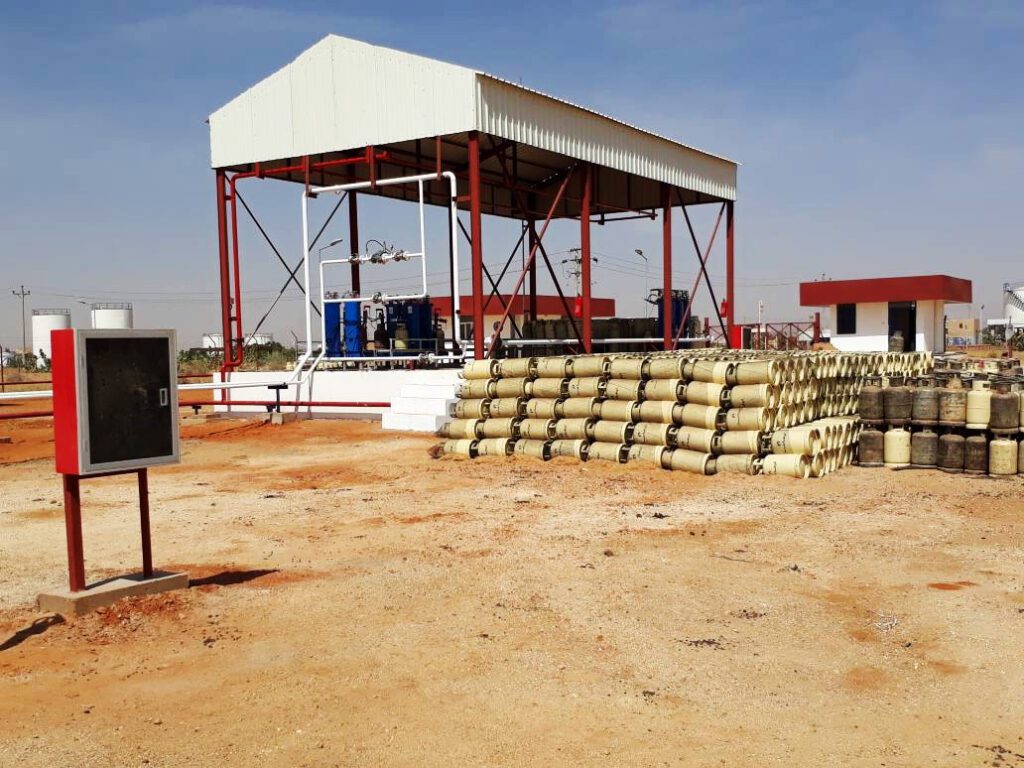

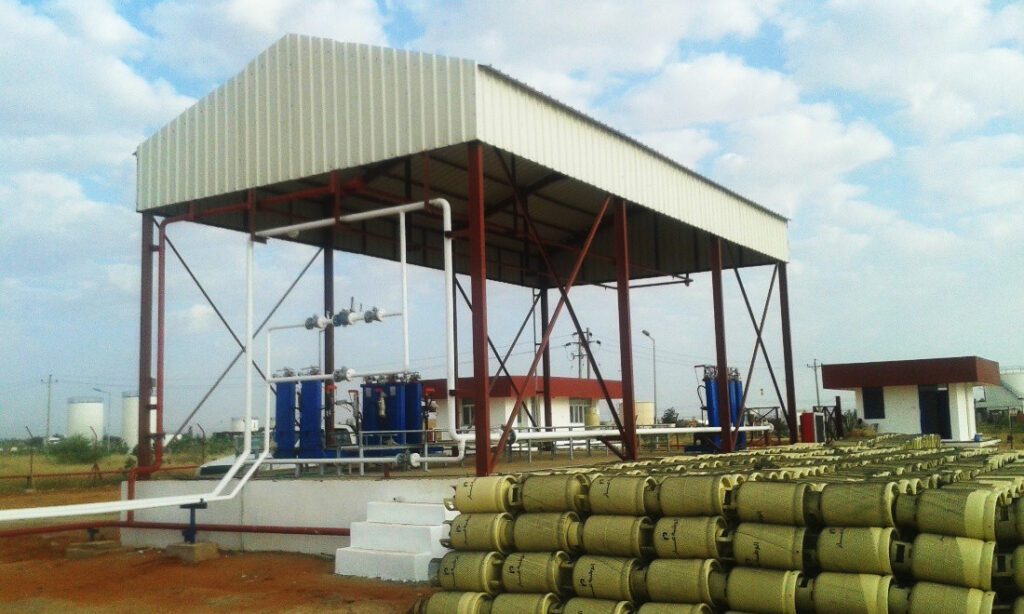

Below are some photos from the depot:
